High-Performance Mixed-Signal Data Acquisition

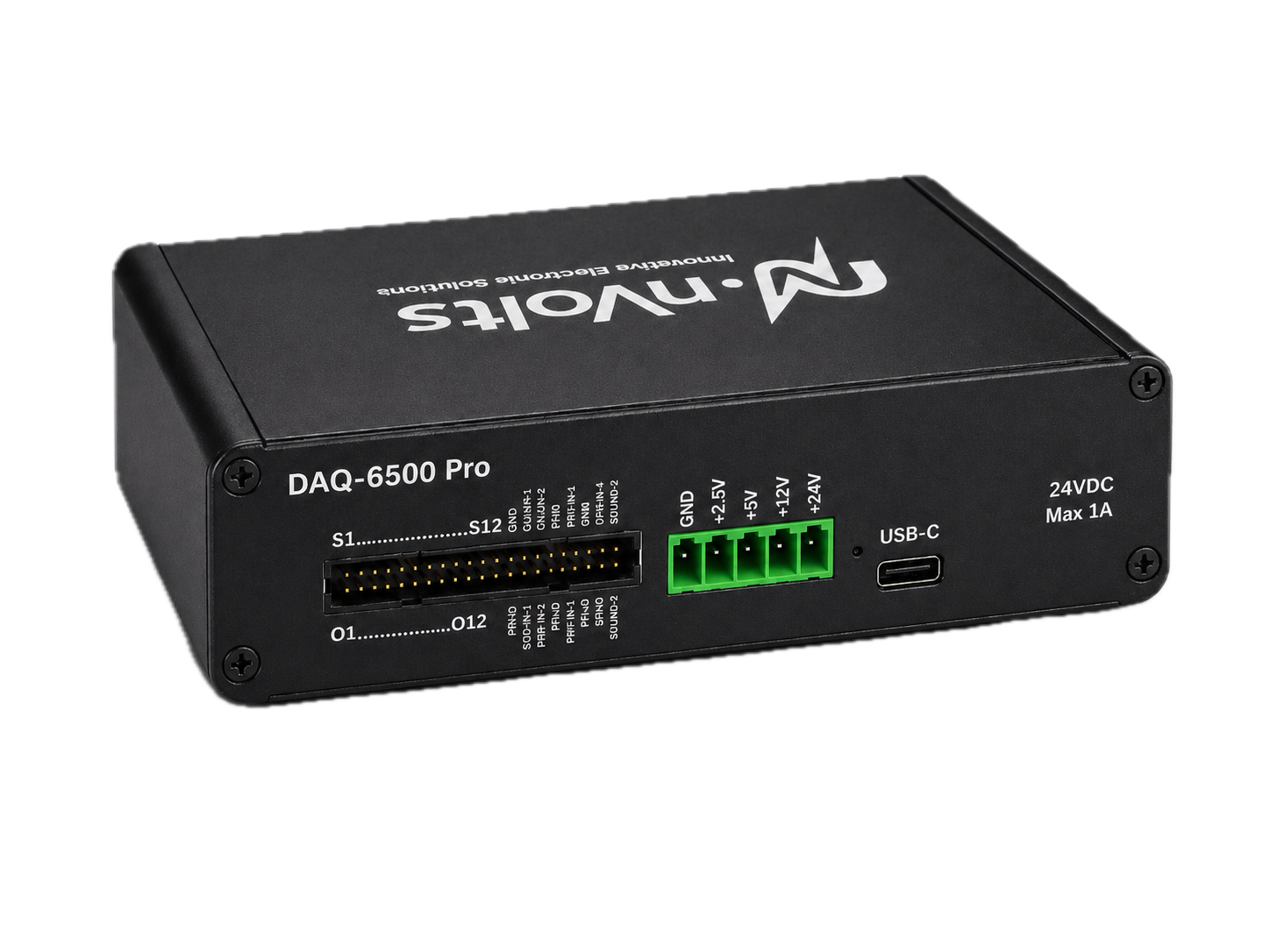

DAQ-6500 Pro
A high-density mixed-signal acquisition and control platform combining fast digital capture, 12-bit analog sampling, analog outputs, 64-bit counters and multi-channel PWM for demanding laboratory and automated test systems.
24 Digital I/O
High-density digital control and capture
8 Analog Inputs
4 Analog Outputs
Up to 10 MHz Digital Capture
Key Specifications
24 channels
Digital I/O
8 channels
Analog inputs
4 channels
Analog outputs
High-density I/O
Acquisition, timing and control
Up to 10 MHz
Digital input sampling
12-bit
Analog sampling resolution
Up to 2 MHz
Analog sampling
4 × 64-bit
Counters
3 × 16-bit
PWM outputs
USB-C UART
Control connection
115200 baud
UART communication
Programmable
Software-defined I/O control
Designed for High-Density Measurement & Control
More I/O in One Platform
Bring 24 digital lines, eight analog inputs and four analog outputs into one coordinated system.
High-Speed Timing Resources
Combine fast acquisition with four 64-bit counters and three 16-bit PWM outputs.
Integrated High-Speed Mixed-Signal I/O
DAQ-6500 Pro combines high-density digital and analog I/O with fast sampling and onboard timing resources in one programmable platform.
- 24 digital I/O channels
- 8 analog input channels
- 4 analog output channels
- Digital input sampling up to 10 MHz
- 12-bit analog sampling up to 2 MHz
- Four 64-bit counters and three 16-bit PWM outputs
nV Software Capabilities
- Digital I/O configuration
- Analog acquisition setup
- Analog output control
- Counter and PWM control
- Measurement monitoring
- Recipe save and load
Open and Integrable Platform
USB-C UART communication at 115200 baud supports integration into laboratory automation, high-density test fixtures and custom software-controlled measurement systems.
