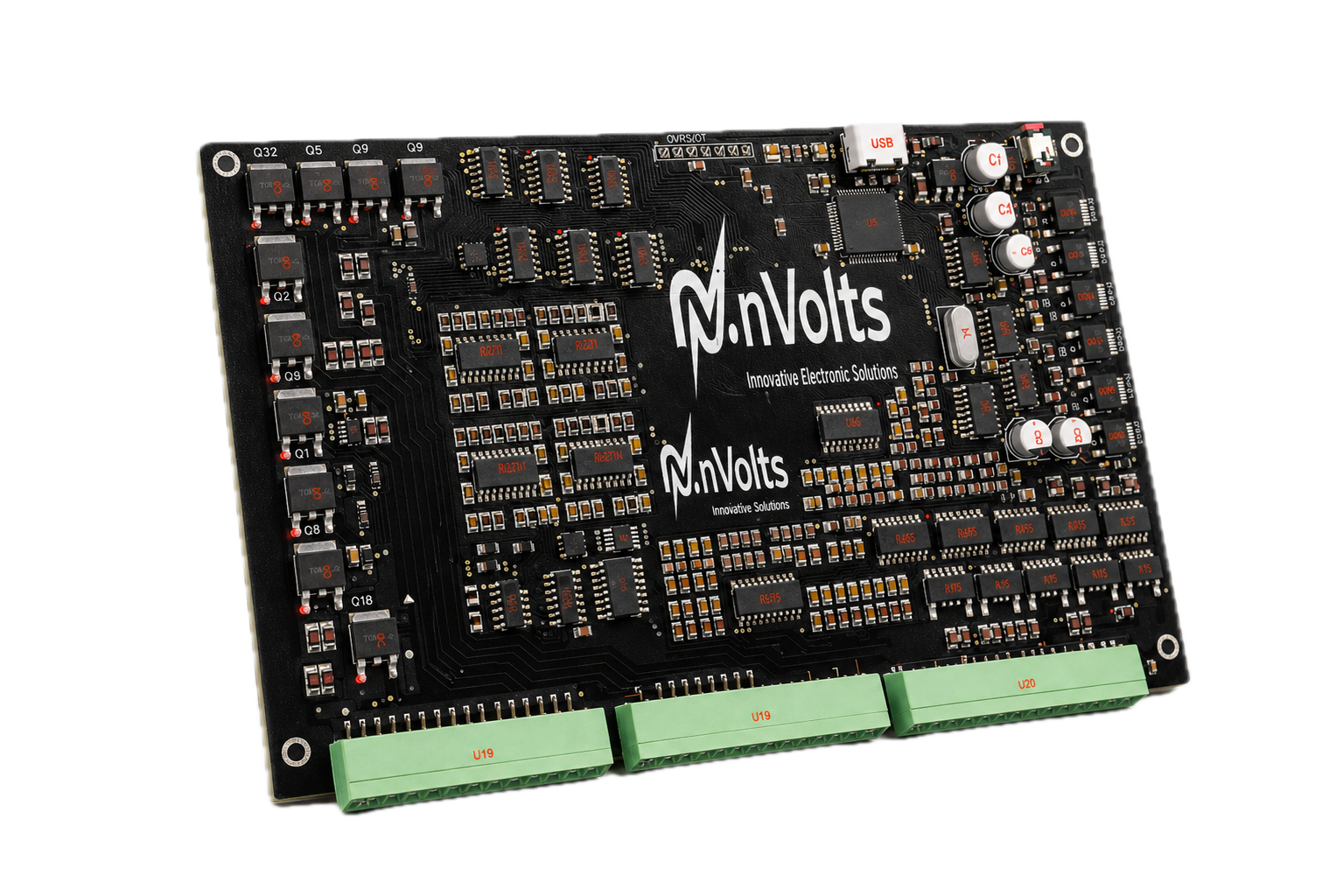

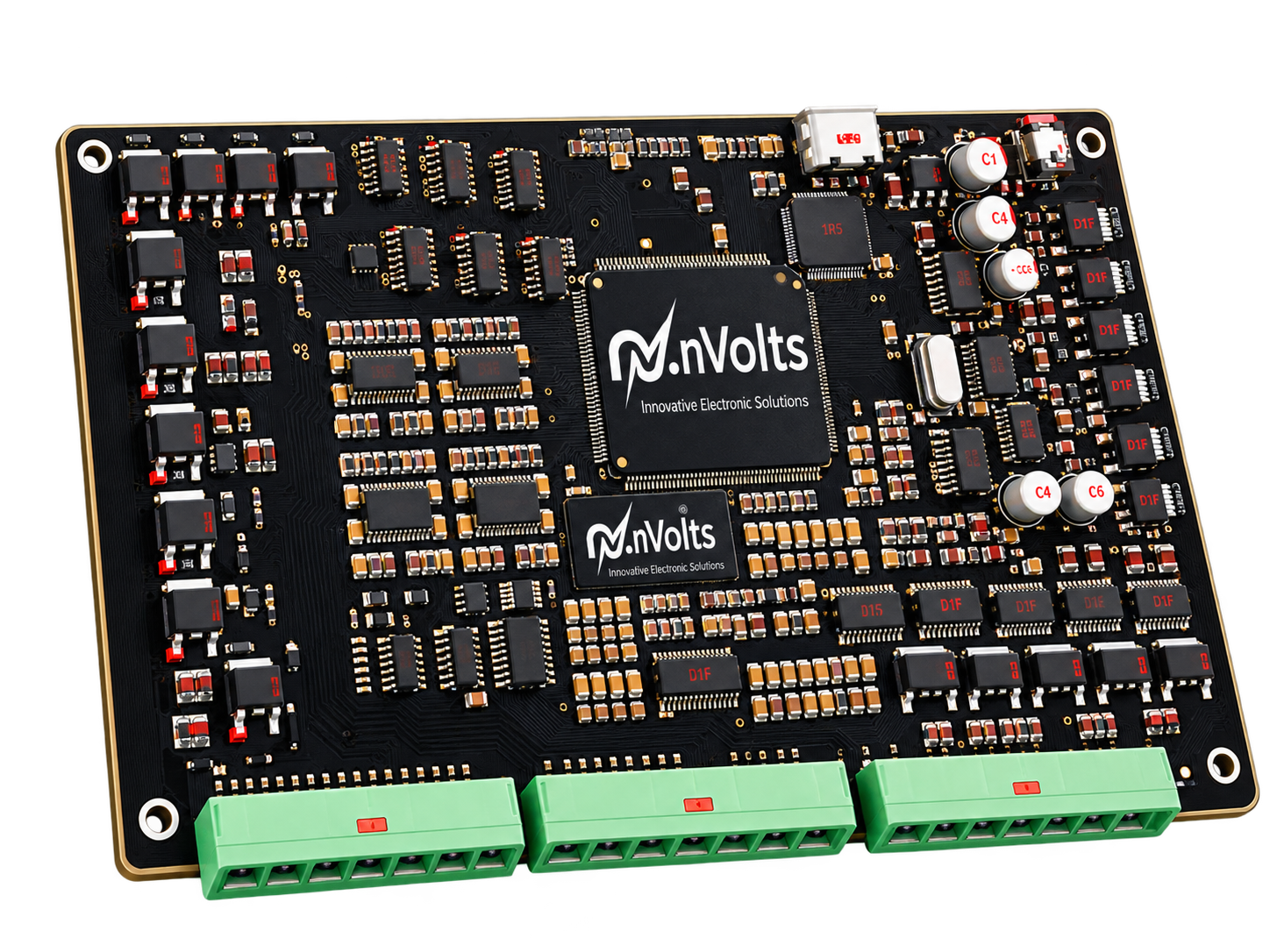

PPM-5200
Precision 6-Channel Power Management
& Current Measurement Platform
A compact and versatile platform for precise multi-channel DC power control and current measurement in laboratory and development environments.
6 Independent
Channels
Programmable DC outputs
0 – 20 V
Output voltage range
(per channel)
Up to 300 mA
Adjustable output current
(per channel)
12-Bit
High-accuracy current
measurement

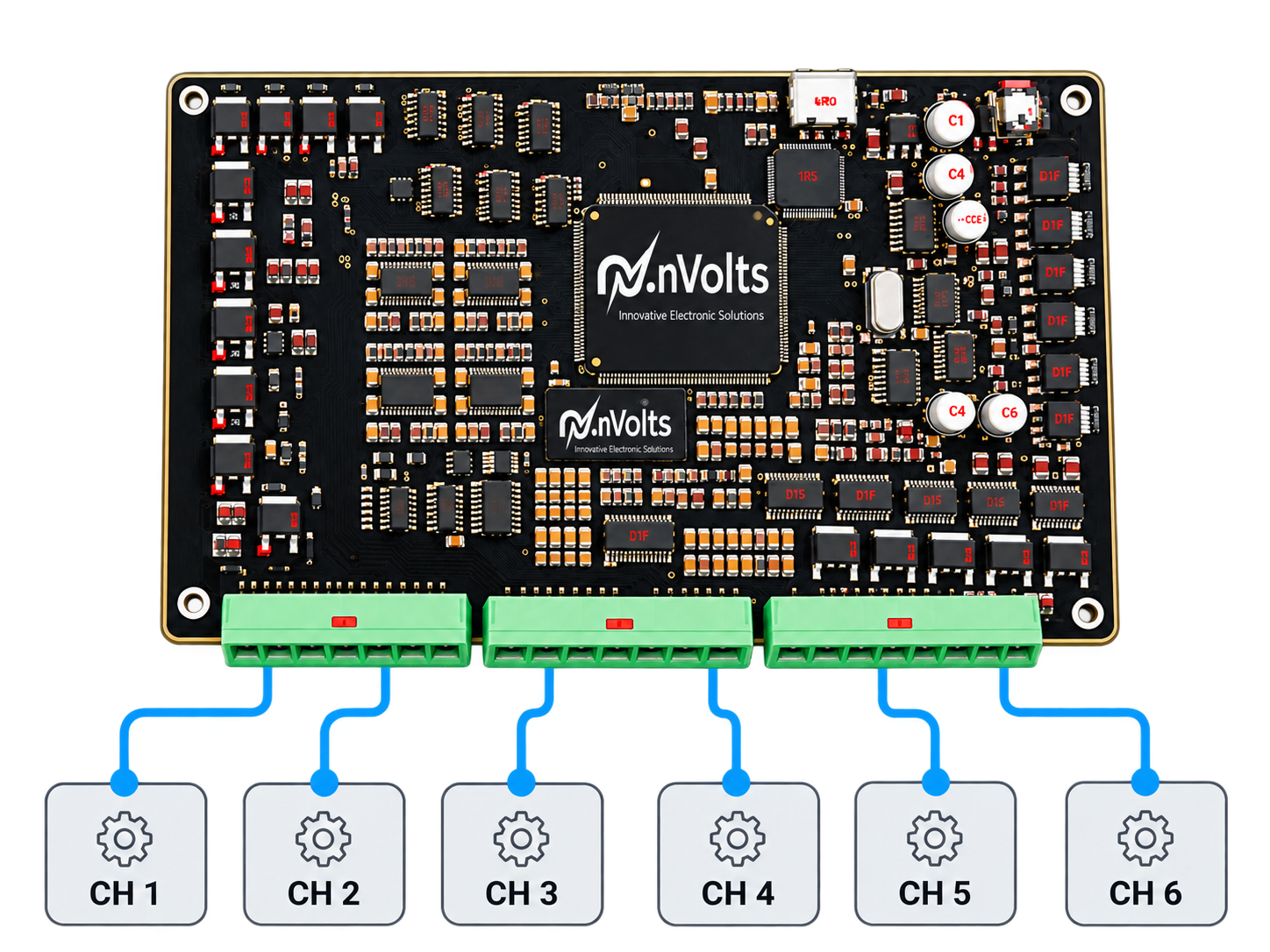

Six Independent
Programmable Outputs
The PPM-5200 provides six independently adjustable DC outputs with precise voltage and current control, making it ideal for powering and testing multiple devices simultaneously.

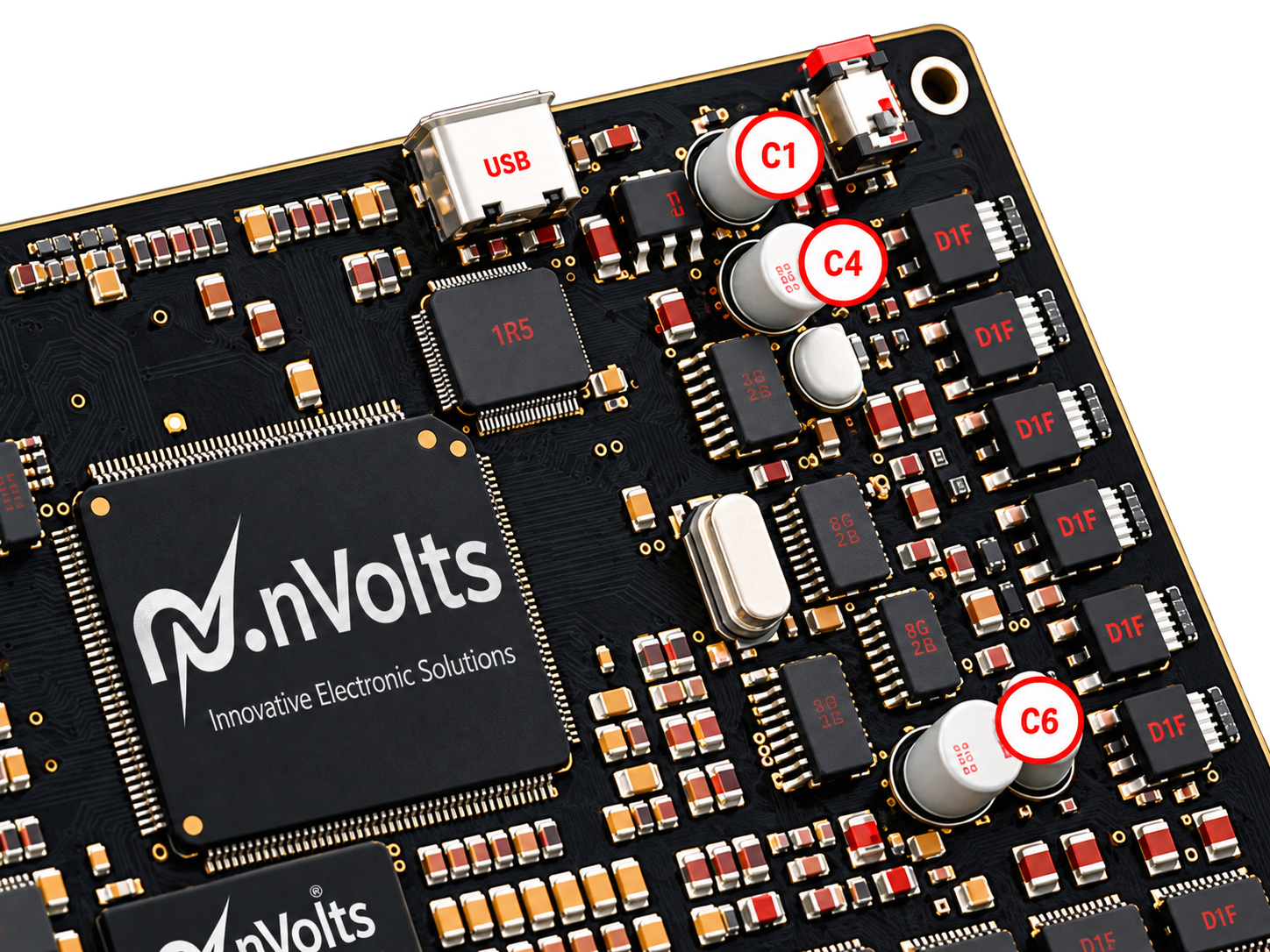

Integrated Current
Measurement
Each channel features integrated 12-bit current measurement with near-zero loading, allowing accurate real-time monitoring of your devices under test without affecting their operation.
Current Measurement
(12-Bit)
High-resolution measurement
with minimal loading

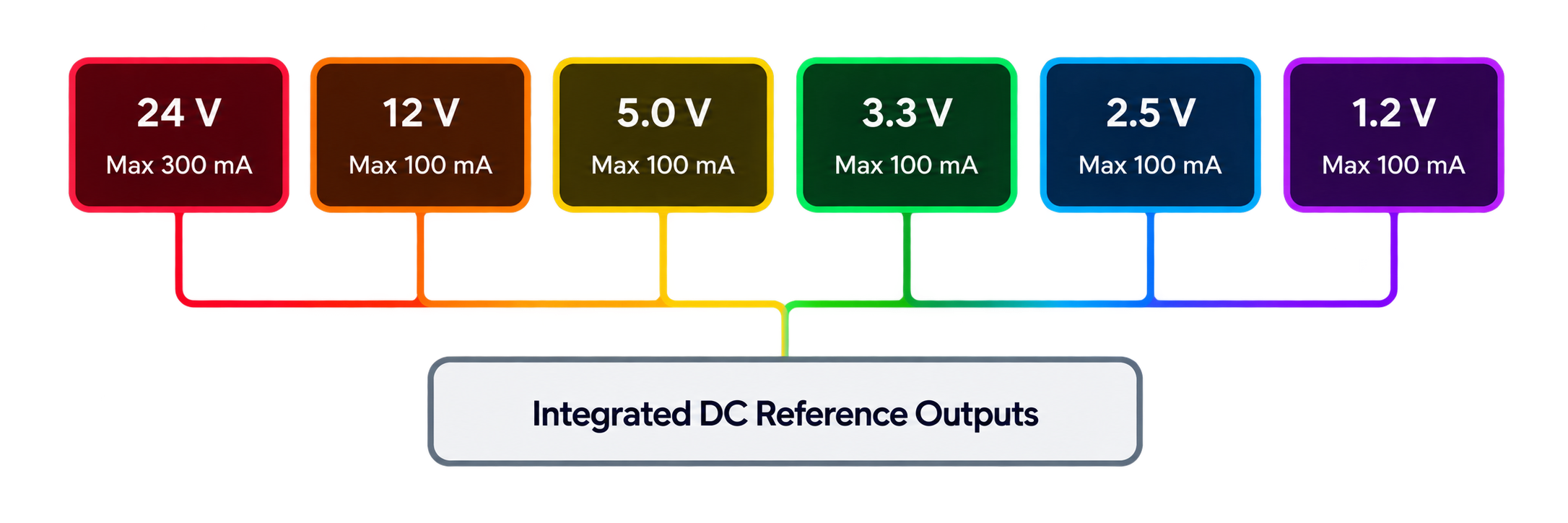

On-Board Reference
Voltages
The PPM-5200 includes integrated multi-voltage DC reference outputs, providing stable and accurate voltage rails to simplify your test and development setup.
Flexible Control
and Software Support
Connect via USB-C with UART communication and control the PPM-5200 using our nV software or your preferred development environment.
USB-C Interface
• USB 2.0 Type-C
• UART communication
• Baud rate 9600
nV Software
• LabVIEW support
• Python support
• C++ support
Cross-Platform Control
Easily integrate into your workflow with ready-to-use tools and examples.
Programmable
DC Outputs
12-Bit Current
Measurement
Multi-Voltage
Reference Outputs
Alarm & Buzzer
Functions
Compact Design
USB-C Interface
UART Communication
Software Support
(LabVIEW, Python, C++)
Designed for Development
and Test Environments
The PPM-5200 is ideal for a wide range of applications in research, development and testing.
Need a custom solution?
Talk to our team to discuss your application and find the right configuration.
