A 32-channel tri-state relay switching platform for programmable signal routing, isolation, distribution and automated test-system reconfiguration.
Request a Consultation
View Specifications

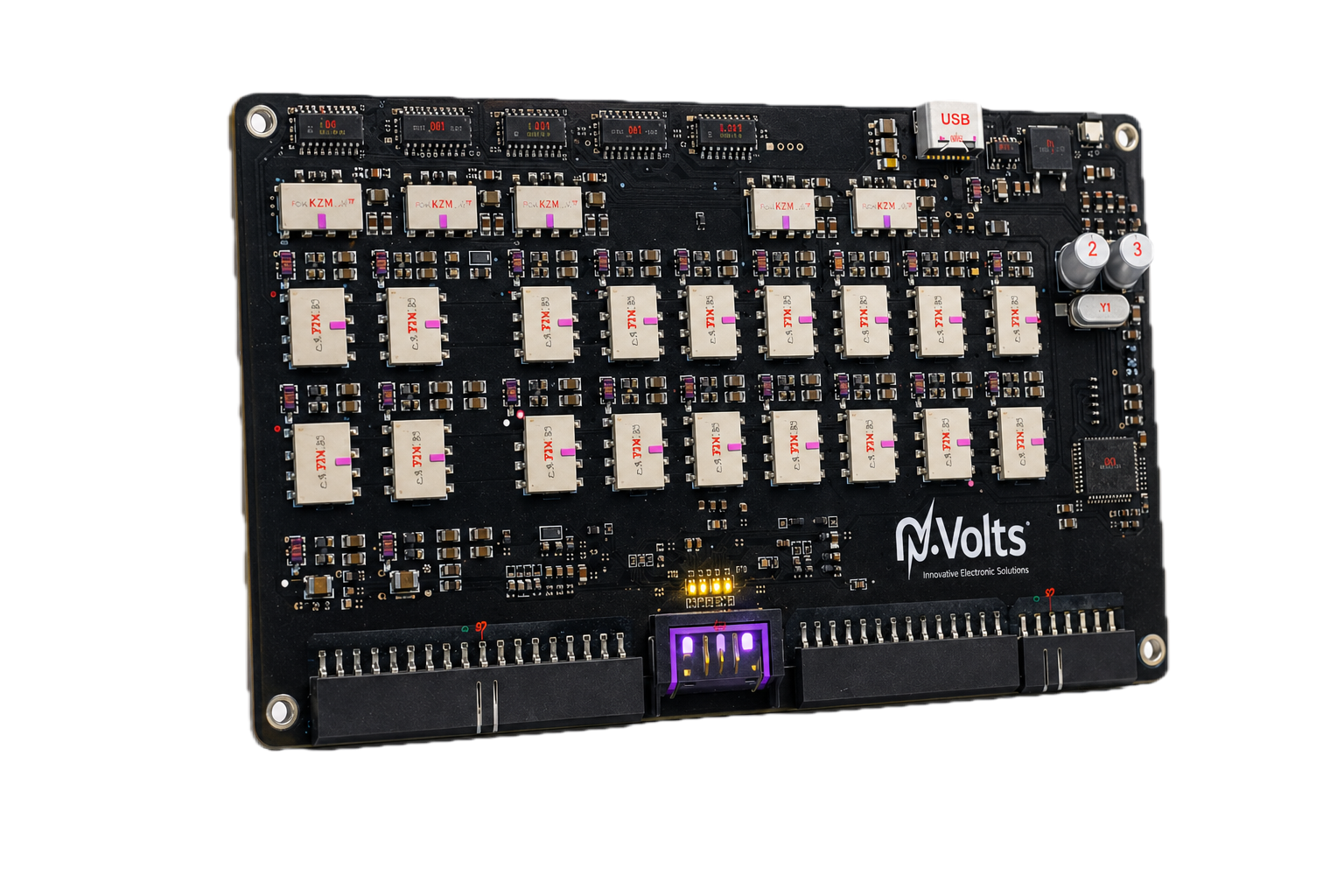

nVolts TSS-3300 tri-state signal switcher

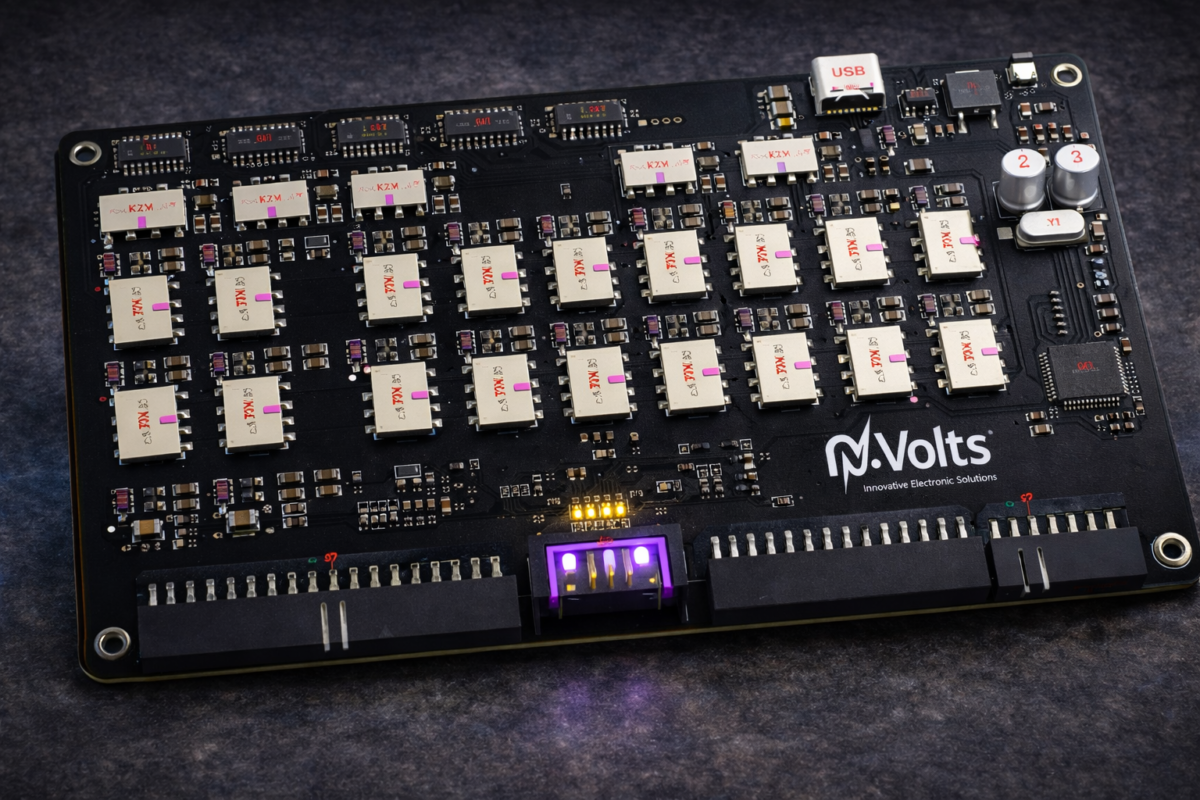

Tri State Signal Switcher

32-Channel Tri-State Switching

Independently configurable signal paths
Switch Matrix 1

Low-Impedance Relay Routing

stat 4ms switching

Fast 4 ms Switching

Open control interface

Open Control & Integration

Key Specifications

Tri State Signal Switcher

32 channels

Tri-state and independently configurable
Switch Matrix 1

Tri-state routing

Route, isolate or distribute signal paths
Open-source control interface

USB-C UART

9600 baud · nV Software · Python / C++ / LabVIEW compatible
TSS-3300 relay switching hardware

Mechanical relays

Latched switching architecture
spec voltage 1

250 VAC

Maximum switching voltage
spec dac 1

2 A @ 30 VDC

Rated DC load
spec current 1

0.5 A @ 125 VAC

Rated AC load
spec frequency 1

4 ms

Maximum operate time
spec output current

4 ms

Maximum release time
32 channel Tri state and configurable 1

100 million

Mechanical operations minimum
spec temperature

USB-C

Control connection
spec gpio

9600 baud

UART communication

Designed for Automated Signal Routing

Electric Darker Neural Brain Icon

Flexible Test Fixtures

Reconfigure signal paths without repeated manual rewiring.

spec range

Multi-Device & Neural Routing

Suitable for switching architectures used in device arrays and research setups.

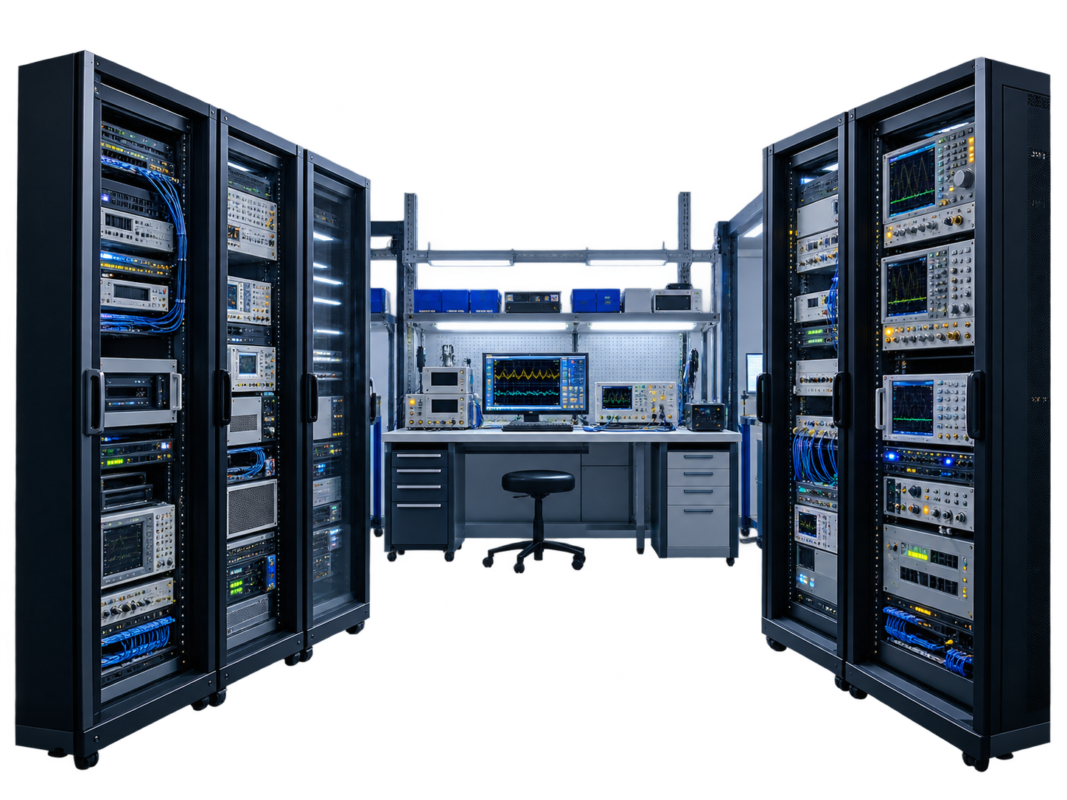

application device switching

Built-In Tri-State Switching Architecture

The TSS-3300 provides 32 relay-based switching channels for controlled routing, isolation and distribution of electrical signals in automated test setups.
  • 32 independently controlled channels
  • Tri-state switching for flexible signal-path configuration
  • AC and DC switching capability
  • Very-low-impedance mechanical relay paths
  • Suitable as a selector or signal distributor
switch

nV Software & Remote Control

  • Individual channel control
  • USB-C serial communication
  • UART protocol at 9600 baud
  • nV Software interface
nV software interface

Open and Integrable Platform

Compatible with Python, C++, LabVIEW and other software environments. Designed for integration into laboratory automation and industrial/instrumentation control workflows.

Applications

exp vector

Automated test fixtures

Electric Darker Neural Brain Icon

Neural-network signal routing

exp memory

Multi-device switching setups

exp sensor

Sensor & instrumentation routing

Typical Switching Tasks

✓   Signal selection and distribution
✓   Device isolation
✓   AC / DC signal switching
✓   Fixture reconfiguration
✓   Repetitive automated switching
✓   Multi-channel routing
✓   Remote / local integration
