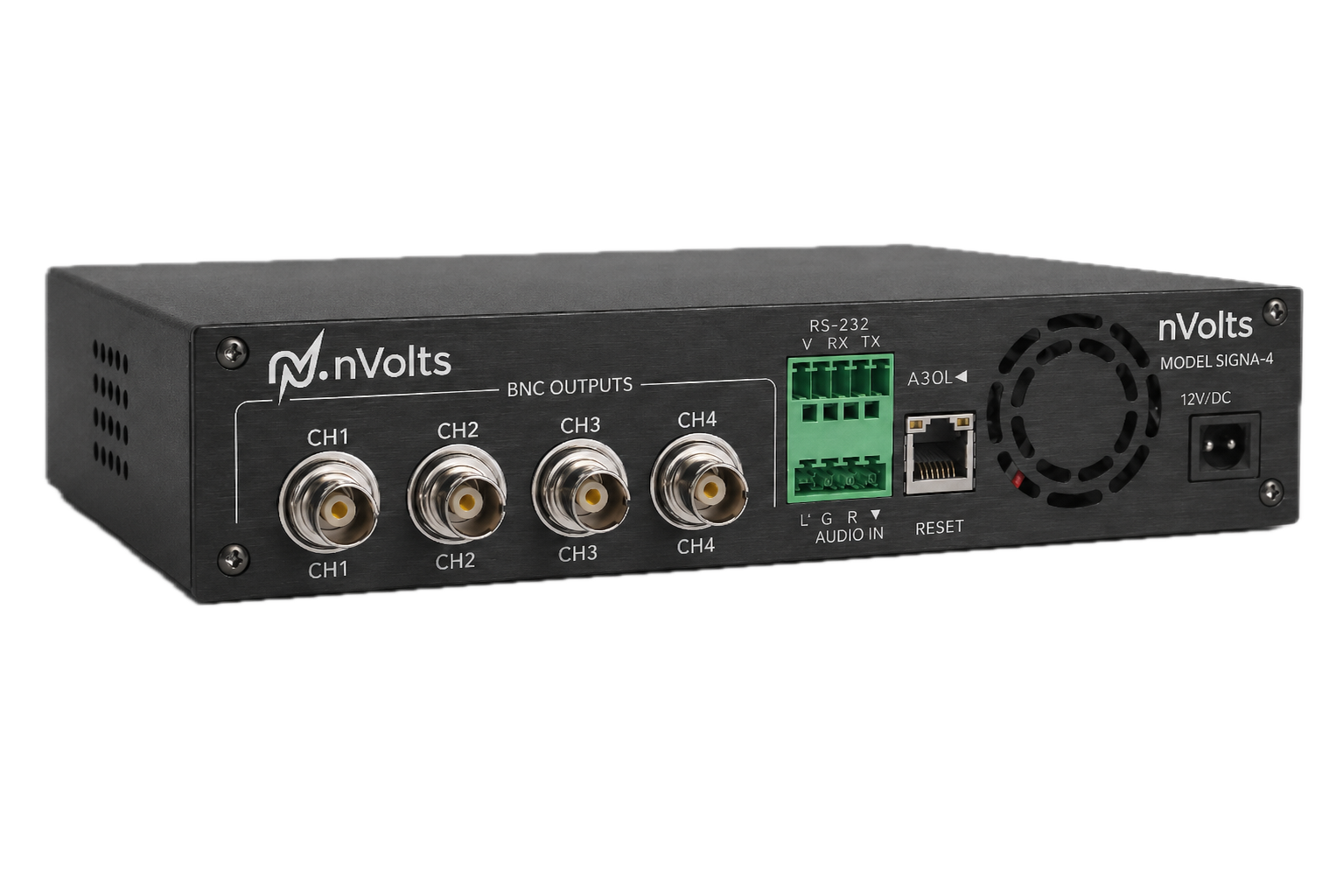

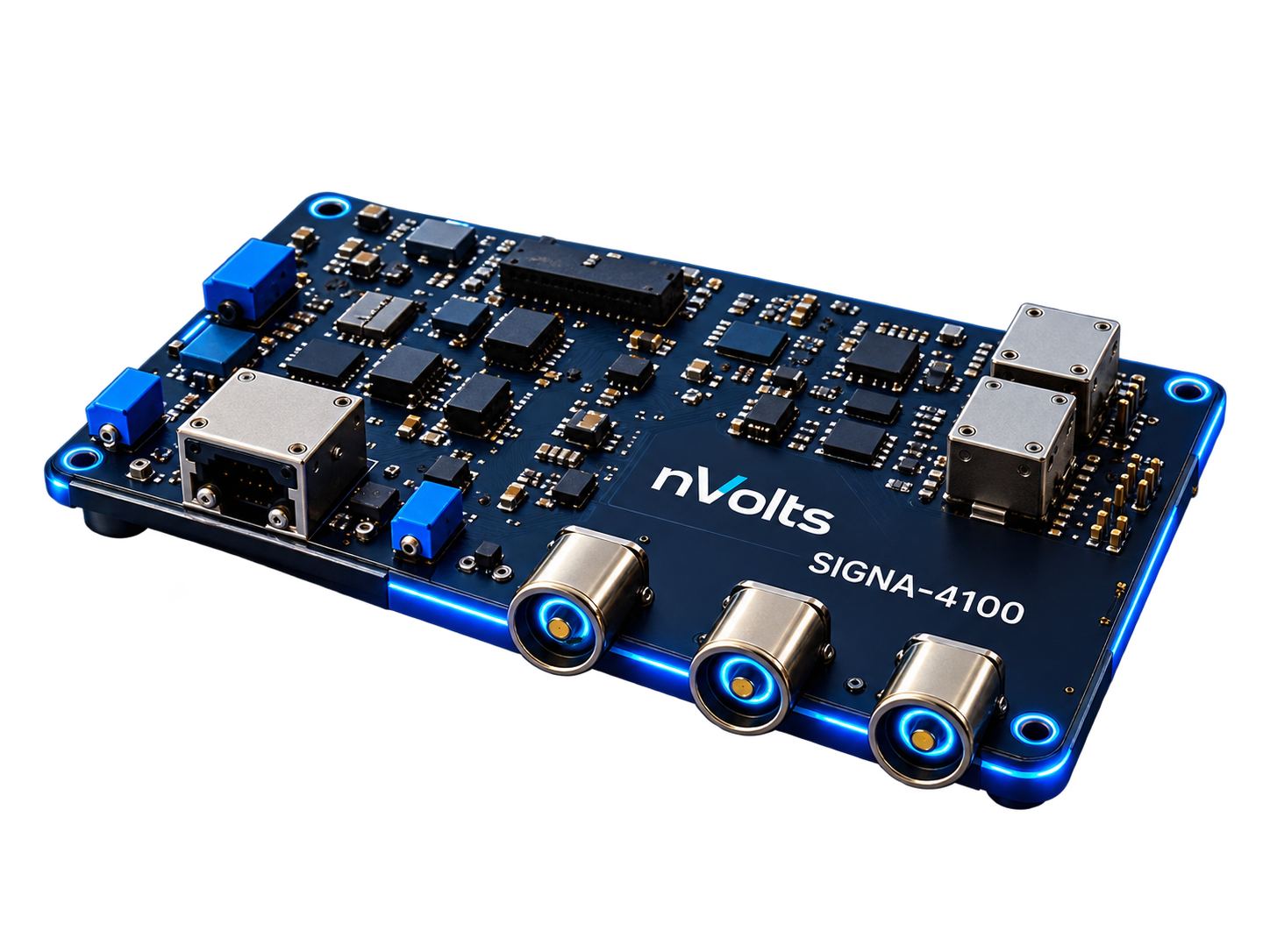

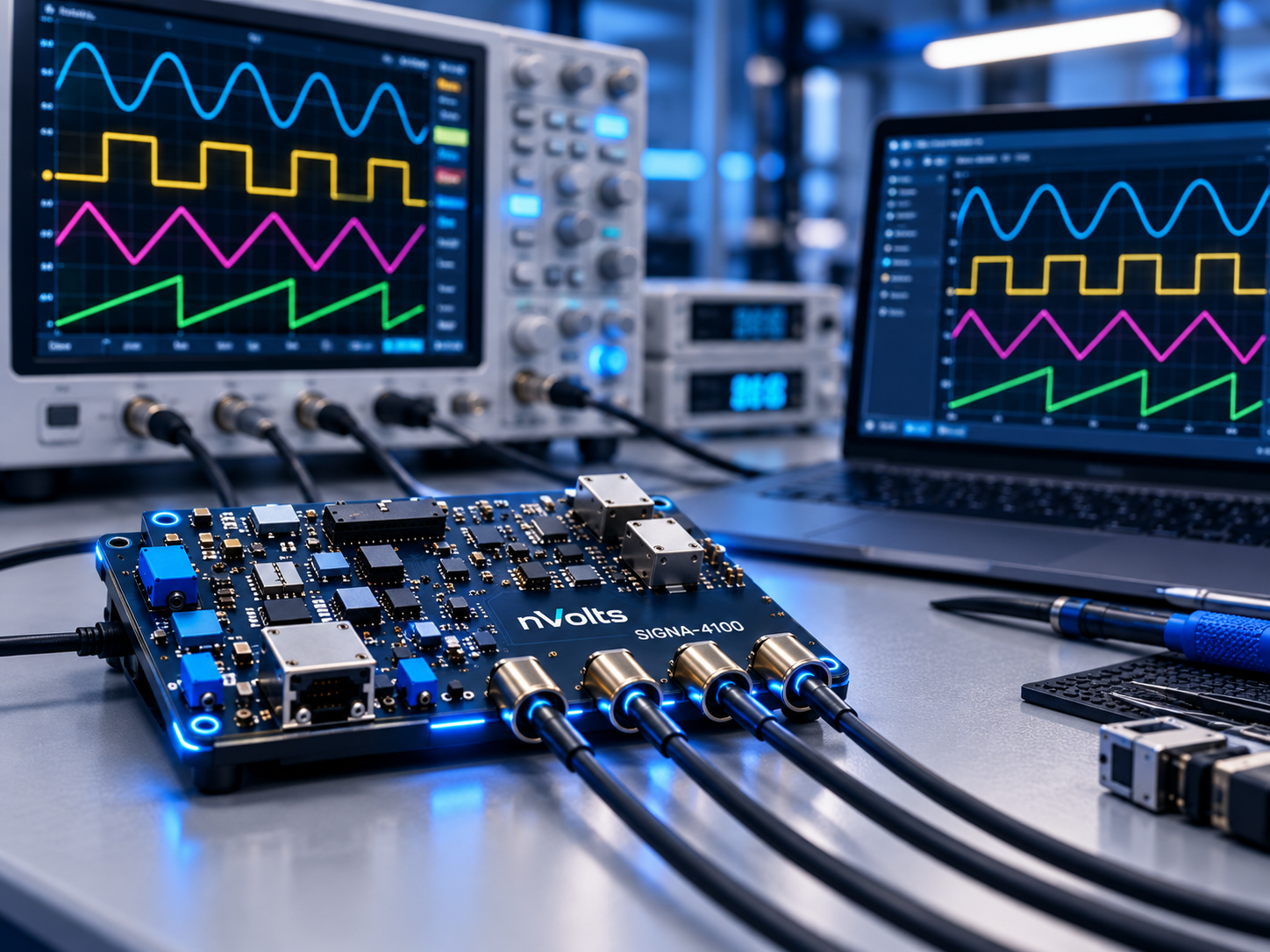

SIGNA-4

Specification:

• Connection:
  • USB2.0 type-C
  • Ethernet
  • Baud rate = 115200

• Output signal:
  • Adjustable amplitude

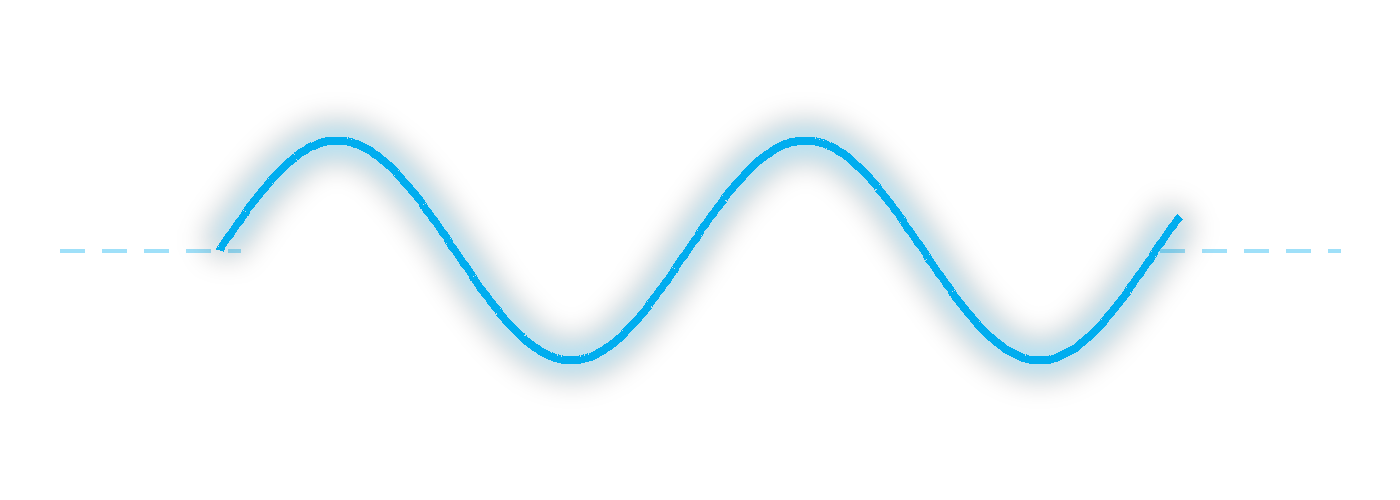

  • Single supply level = 0 to +24v

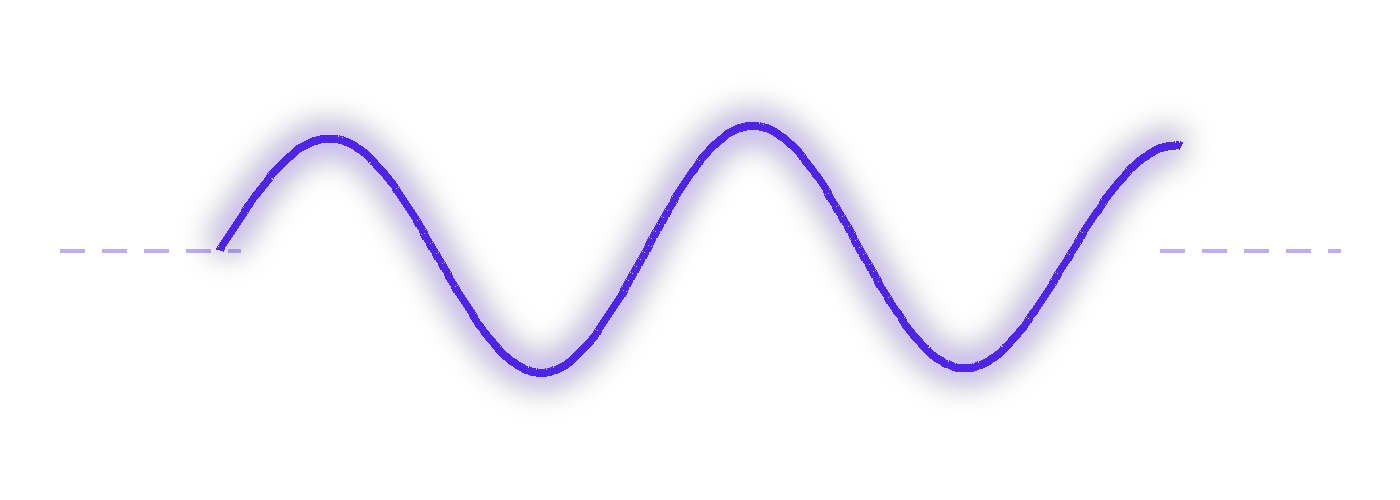

  • Dual supply level = -12v to +12v
  • 300mA Max
  • 16bits resolution (~50µv accuracy max)
  • Adjustable Frequency Up to 1 MHz
  • PWM

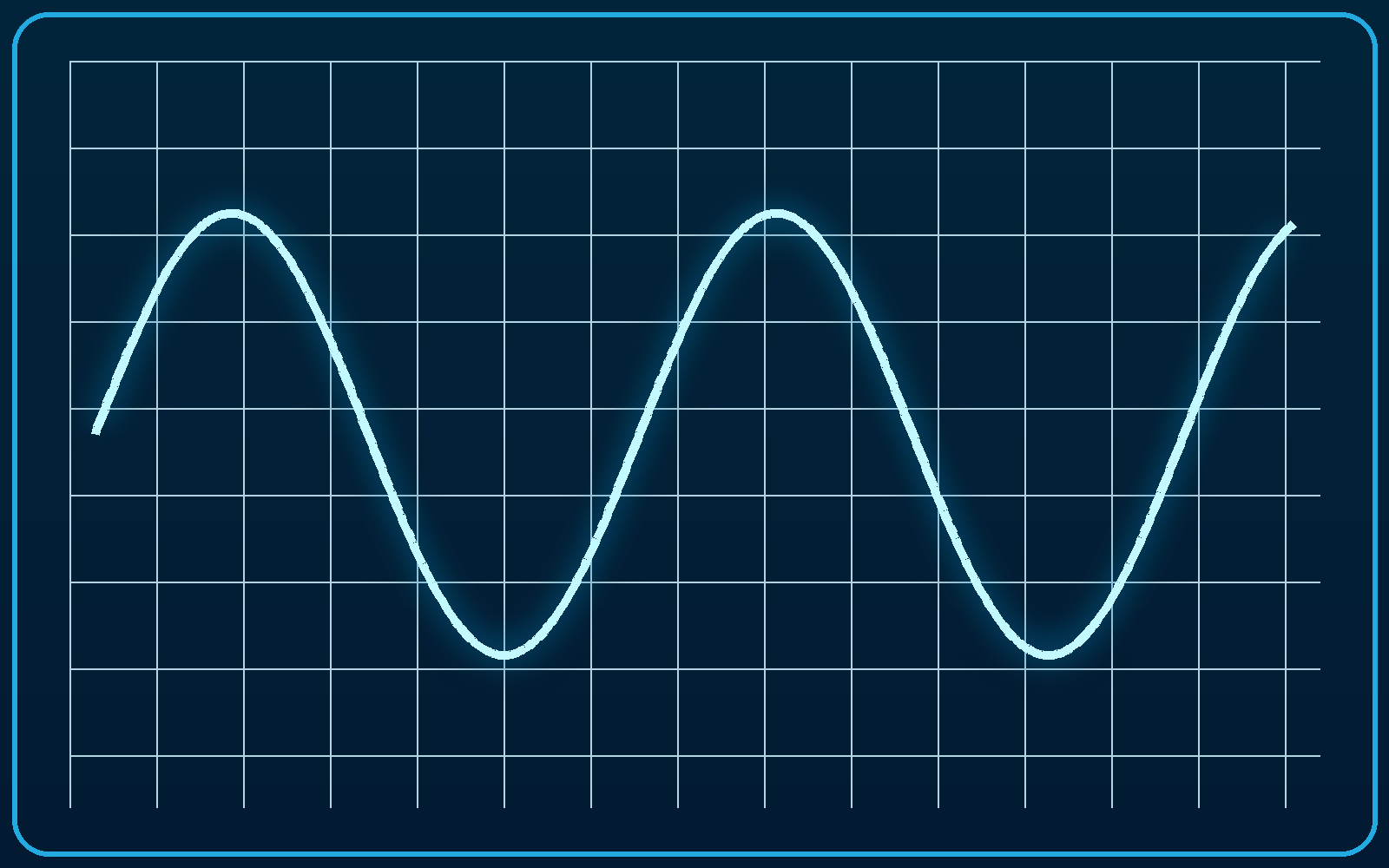

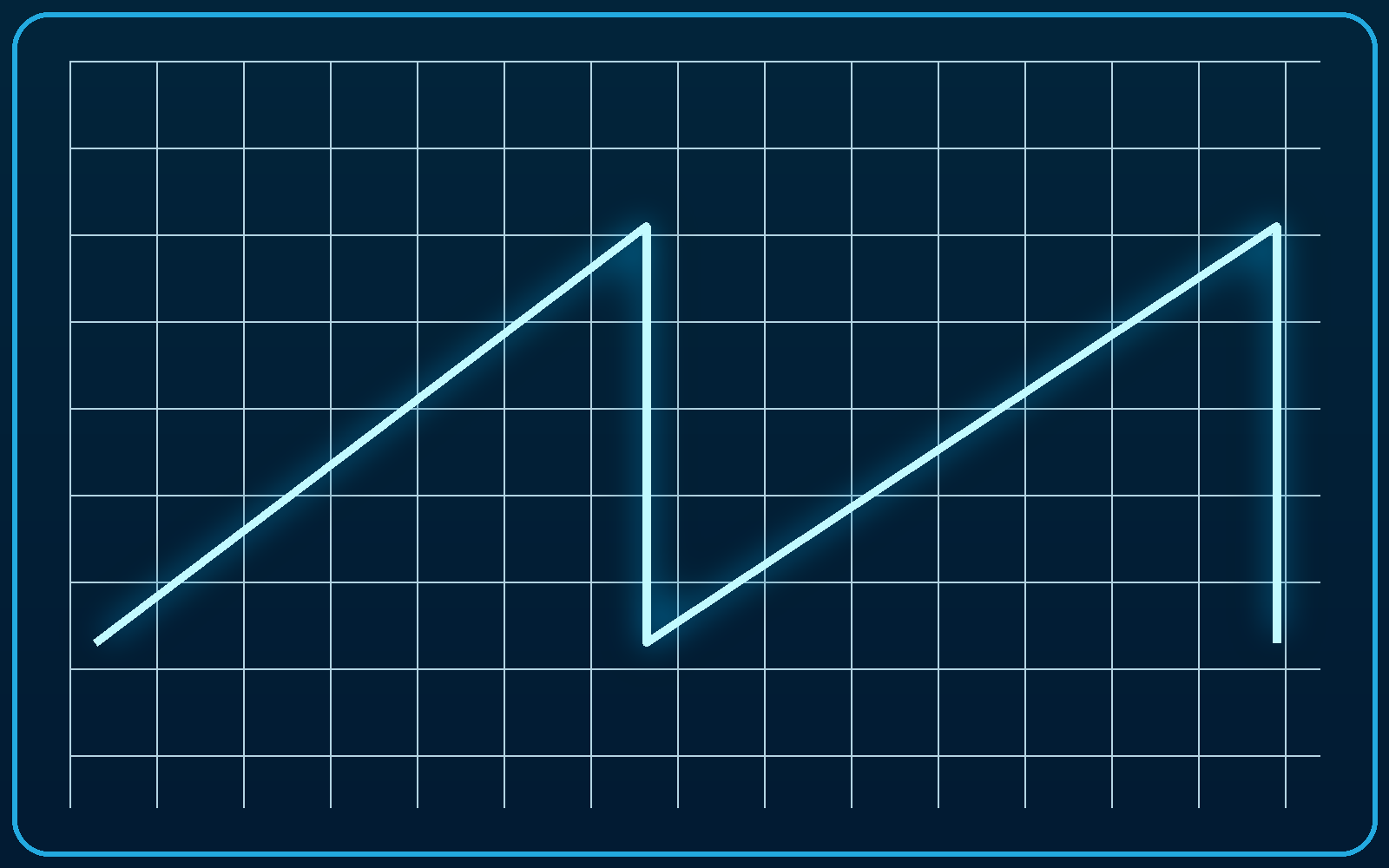

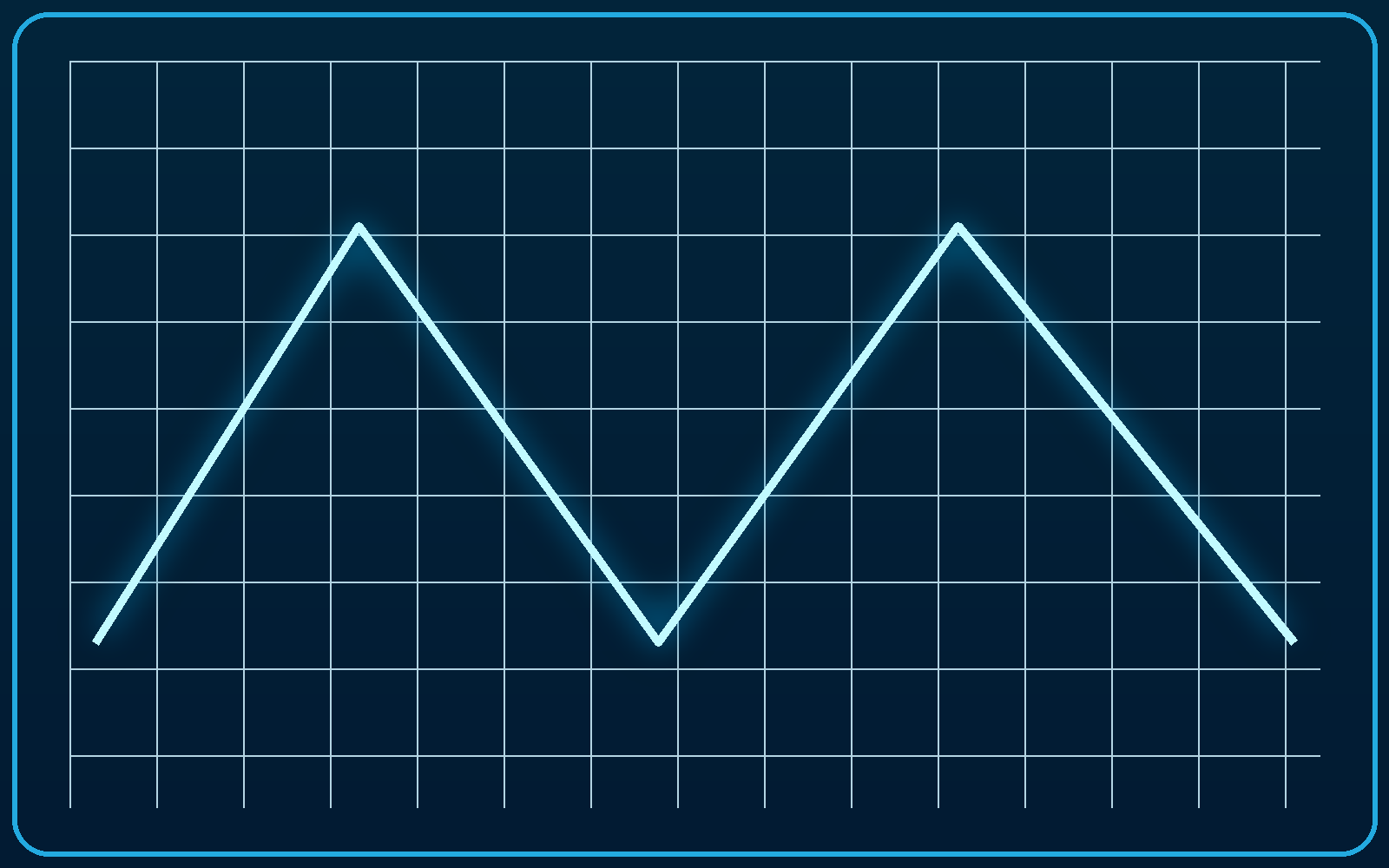

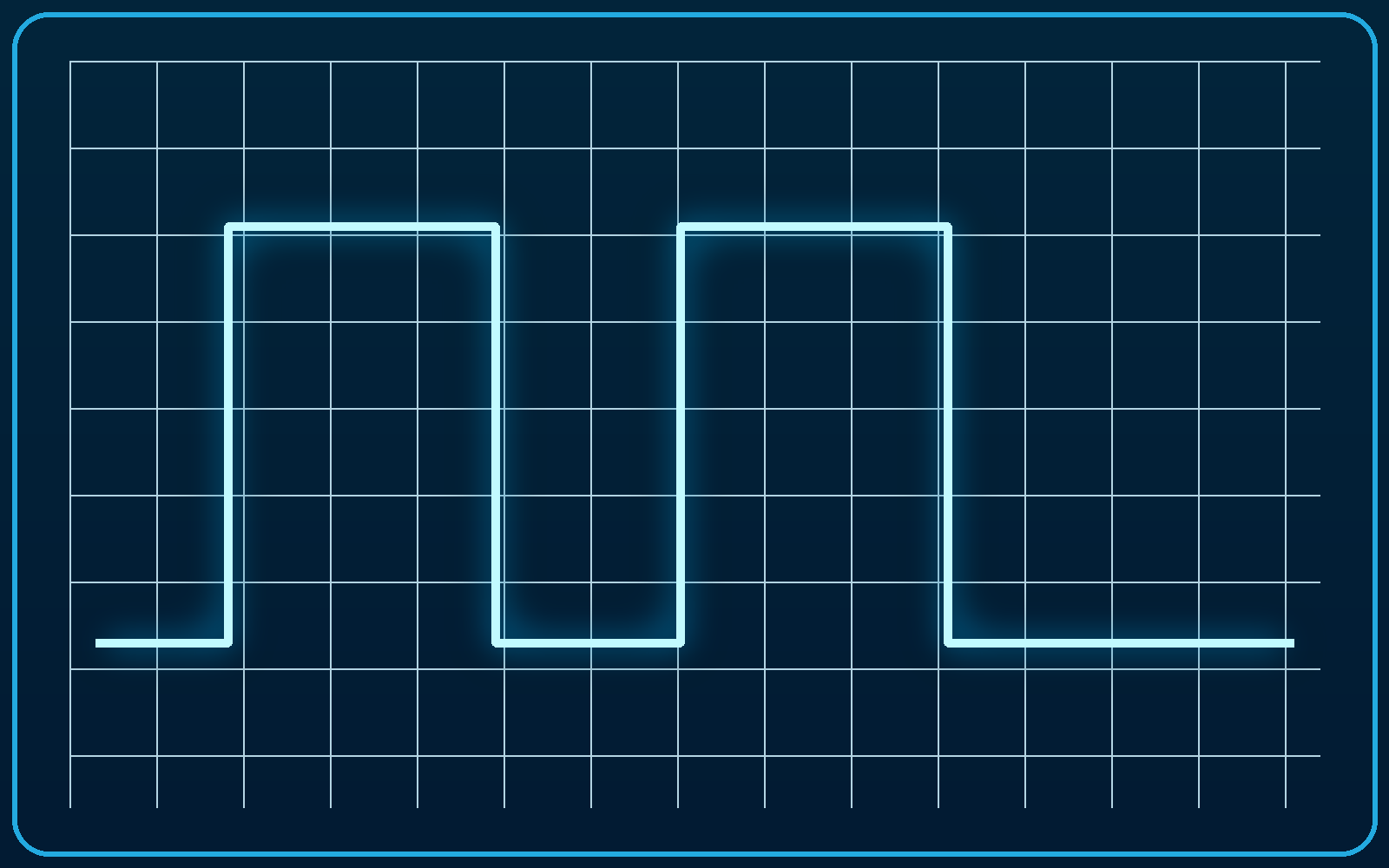

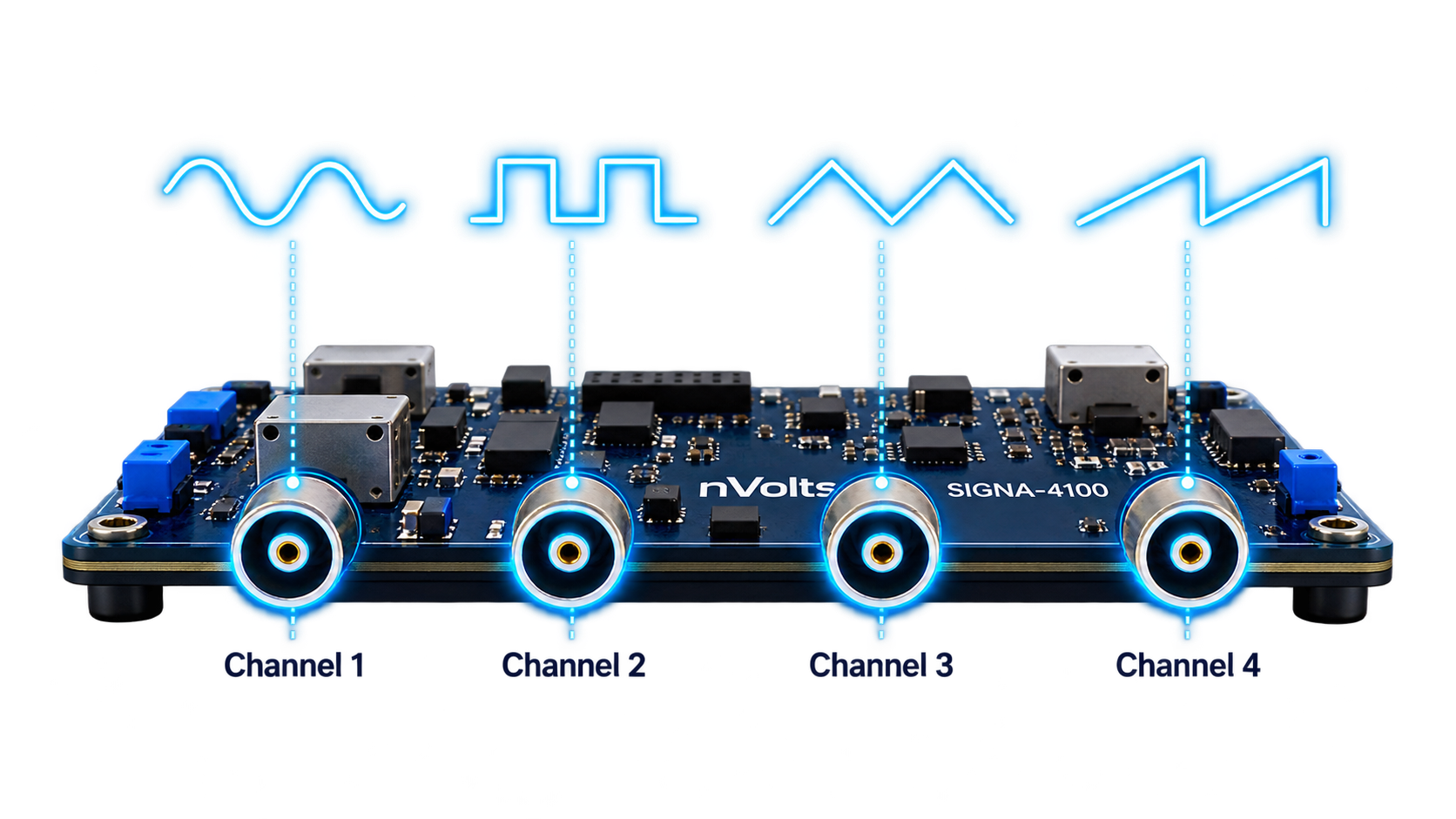

  • Waveform = Square – Triangle – Ramp – Sin

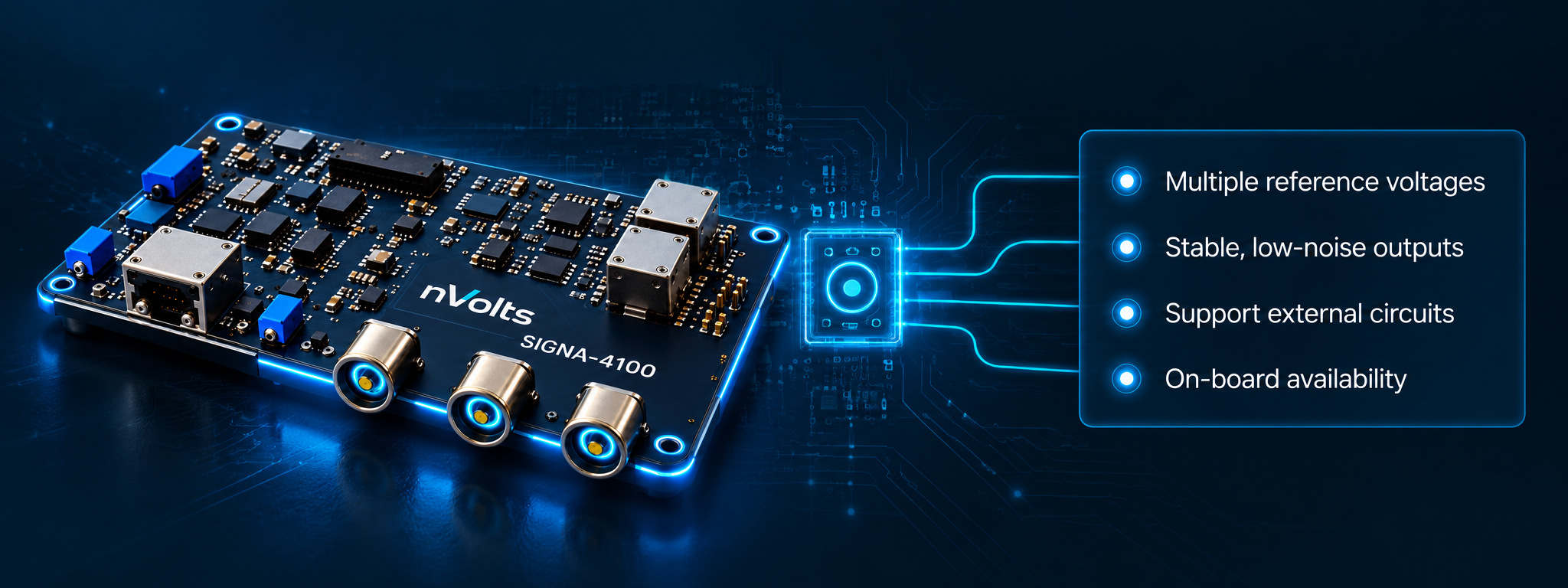

• DC Output:
  • 24v – Max 500mA
  • 12v – Max 500mA
  • 5.0v – Max 200mA
  • 3.3v – Max 200mA
  • 2.5v – Max 200mA
