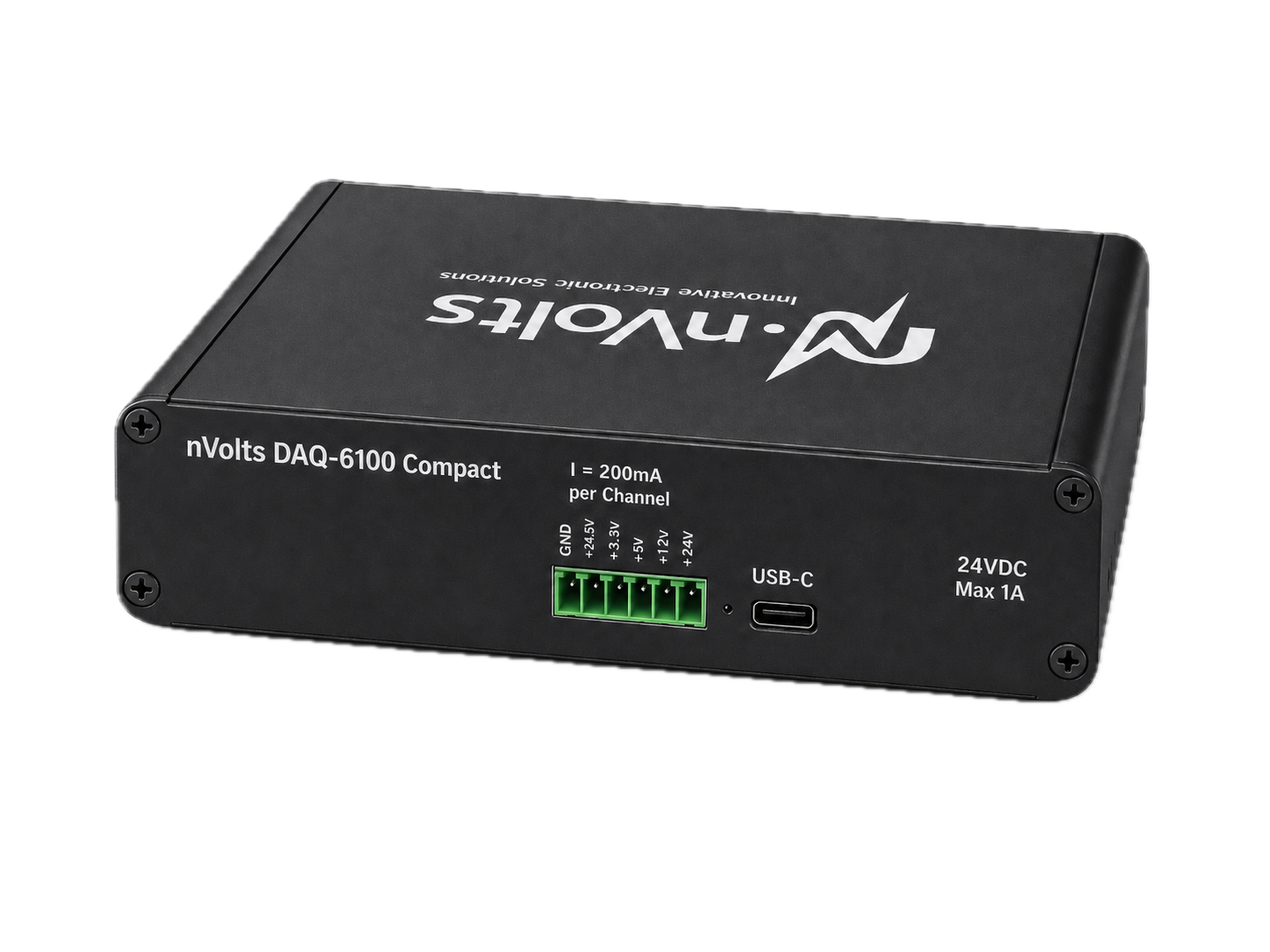

DAQ-6100 Compact

Specification:

• Connection:
  • USB2.0 type-C
  • Baud rate = 9600

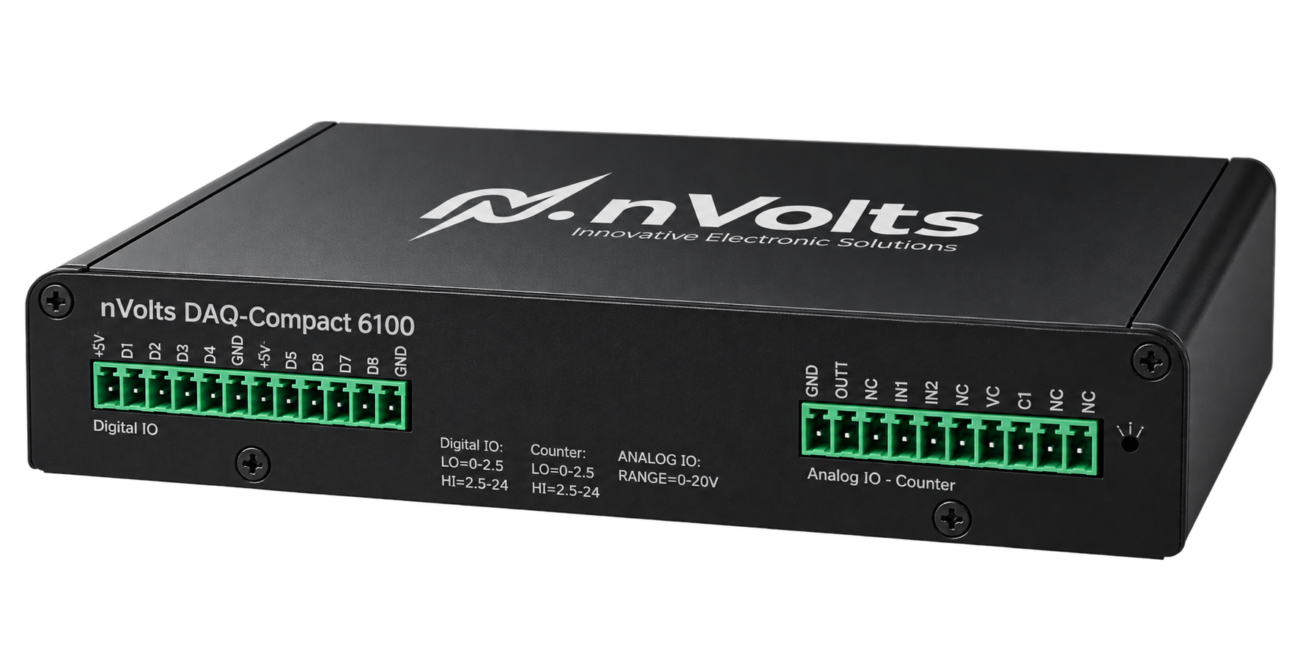

• Digital Input:
  • High level = 2.5v – 24v
  • Low level = 0v – 2.5v
  • 1MHz Sampling rate
  • High current protection

• Digital Output:
  • High level = 4.5v
  • Low level = 0v
  • High current protection
  • Input signal protection
  • 10mA Max

• Analog Input (ADC):
  • Min level = 0v
  • Max level = 20v
  • Near-zero current consumption
  • 125 KHz Sampling rate
  • 10bits resolution (~20mv accuracy)

• Analog output (DAC):
  • Min level = 0v
  • Max level = 20v
  • 10mA Output
  • 8bits resolution (~70mv accuracy)

• Counter:
  • High level = 2.5v – 24v
  • Low level = 0v – 2.5v
  • 1MHz Sampling rate
  • High current protection
  • 32bit capacity

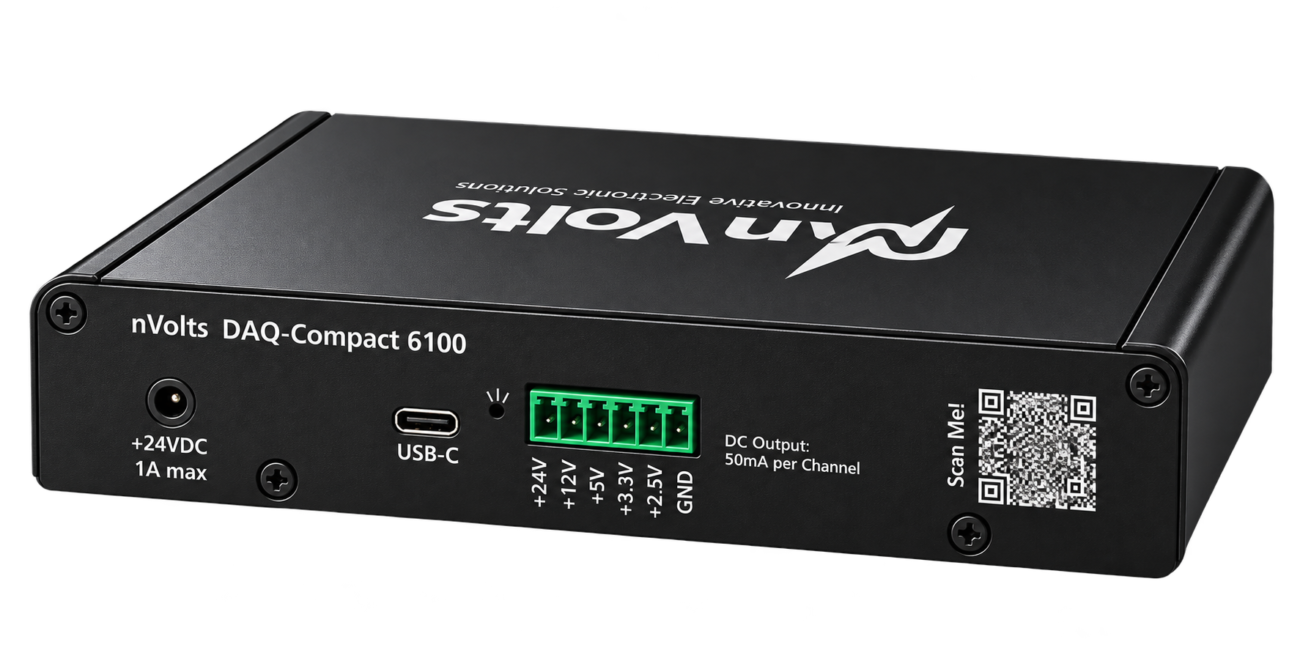

• DC Output:
  • 24v – Max 300mA
  • 12v – Max 100mA
  • 5.0v – Max 50mA
  • 3.3v – Max 50mA
  • 2.5v – Max 50mA
