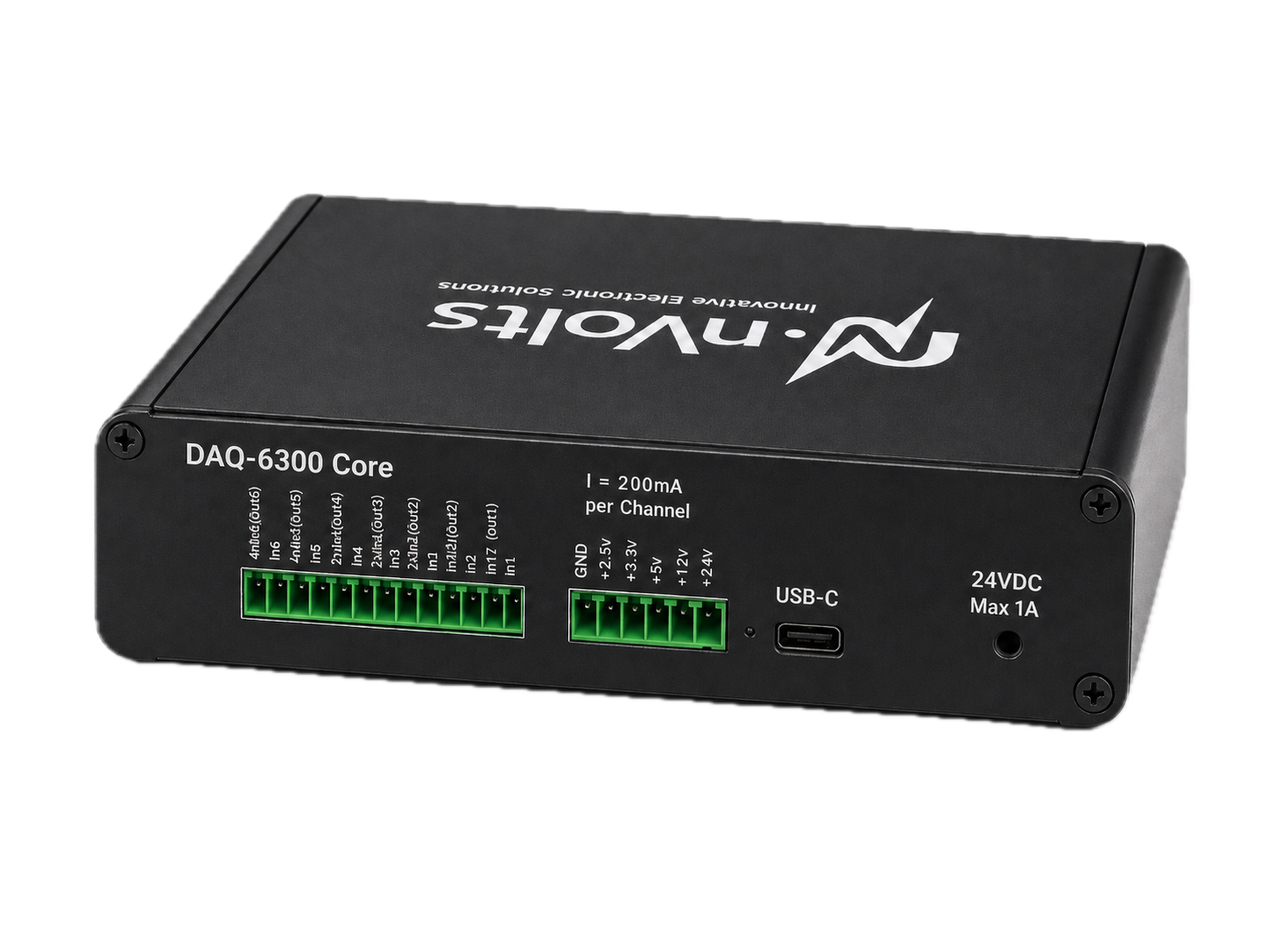

DAQ-6300 Core
A compact mixed-signal data-acquisition and control platform combining digital I/O, analog measurement, analog outputs, counters and PWM for laboratory and embedded test systems.
16 Digital I/O
Programmable digital control and capture
4 Analog Inputs
2 Analog Outputs
Software-Controlled I/O
Key Specifications
16 channels
Digital I/O
4 channels
Analog inputs
2 channels
Analog outputs
Mixed-signal I/O
Acquisition, control and stimulus
Up to 1 MHz
Digital sampling
10-bit
Analog sampling resolution
Up to 125 kHz
Analog sampling
2 × 32-bit
Counters
8-bit · 7.8 kHz
PWM
6 channels
Signal multiplier
USB-C UART
Control connection
9600 baud
UART communication
Designed for Compact Measurement & Control
Balanced I/O Resources
Combine digital control, analog acquisition and analog outputs in one compact device.
Built-In Timing Tools
Use counters and PWM for event counting, triggering and control.
Integrated Mixed-Signal I/O
DAQ-6300 Core brings digital I/O, analog input, analog output and timing resources together in a single programmable platform.
- 16 digital I/O channels
- 4 analog inputs
- 2 analog outputs
- Two 32-bit counters
- 8-bit PWM at 7.8 kHz
- Six-channel signal multiplier

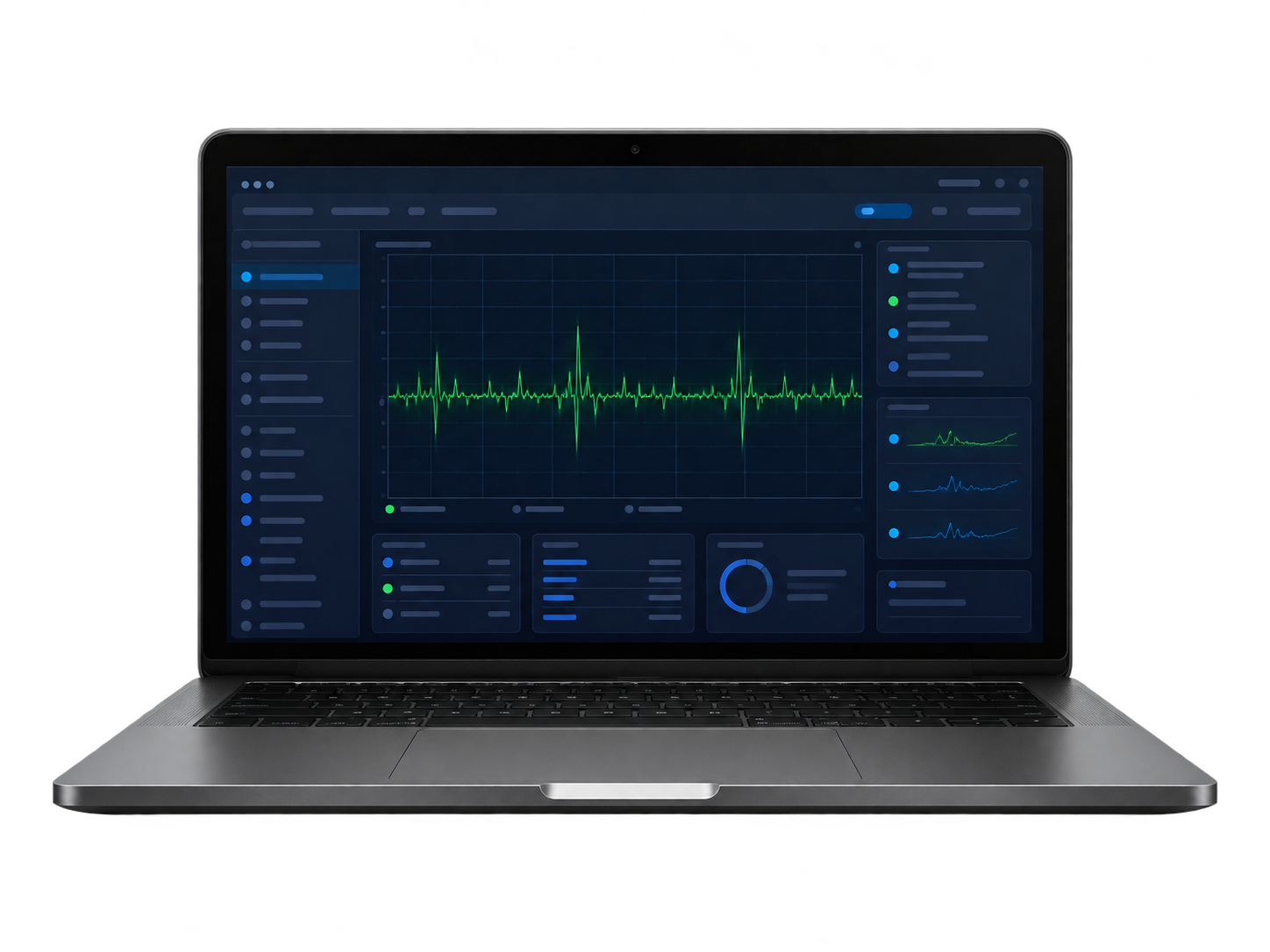

nV Software Capabilities
- Digital I/O configuration
- Analog channel setup
- Counter and PWM control
- Measurement monitoring
- Recipe save and load
- Terminal communication
Open and Integrable Platform
USB-C UART communication at 9600 baud supports integration into laboratory automation, embedded test fixtures and custom software-controlled measurement systems.
